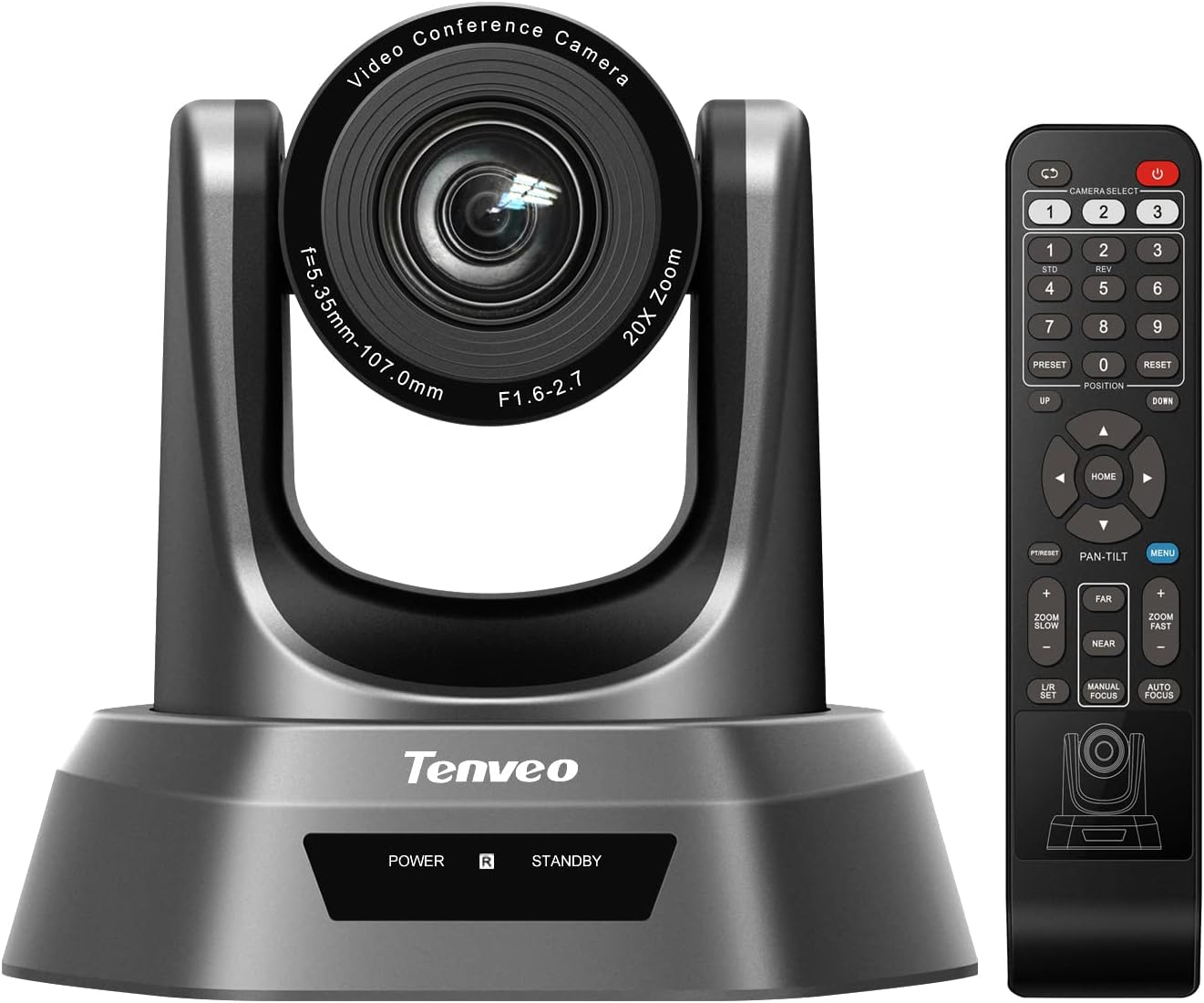

This high-performance PTZ camera features a 20x optical zoom lens and delivers Full HD 1080p video at up to 60 frames per second. Equipped with PoE support, it allows for simplified installation by transmitting power, video, and control signals over a single Ethernet cable. Its versatile output options and advanced features make it ideal for various applications, including live streaming, video conferencing, and remote education.
Key Features:
- High-Quality Imaging:
- 1/2.8" CMOS sensor with approximately 2.07 megapixels
- Delivers crisp and clear Full HD 1080p video at 60fps
- Advanced 2D/3D noise reduction for superior image clarity even in low-light conditions
- 20x Optical Zoom Lens:
- Focal length ranging from 5.5mm to 110mm
- Field of view from 54.7° (wide) to 3.3° (telephoto)
- Fast and accurate autofocus ensures sharp images during zoom operations
- Flexible Video Outputs:
- Simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs
- Supports multiple streaming protocols, including RTSP, RTMP, and ONVIF
- Compatible with H.264 and H.265 video compression standards
- Power over Ethernet (PoE):
- Complies with IEEE 802.3af standard
- Simplifies installation by combining power, video, and control over a single CAT5/6 cable
- Advanced PTZ Control:
- Pan range: ±170° at speeds up to 60°/s
- Tilt range: -30° to +90° at speeds up to 30°/s
- Supports up to 255 preset positions via IP or serial control; 10 presets via IR remote
- Compatible with control protocols such as VISCA, Pelco-D/P, RS-232, RS-485, and IR
- Audio Input:
- 3.5mm stereo line-in for integrating external microphones or audio sources
- Mounting Options:
- Equipped with a standard 1/4"-20 mounting interface
Suitable for wall, ceiling, or tripod installations
